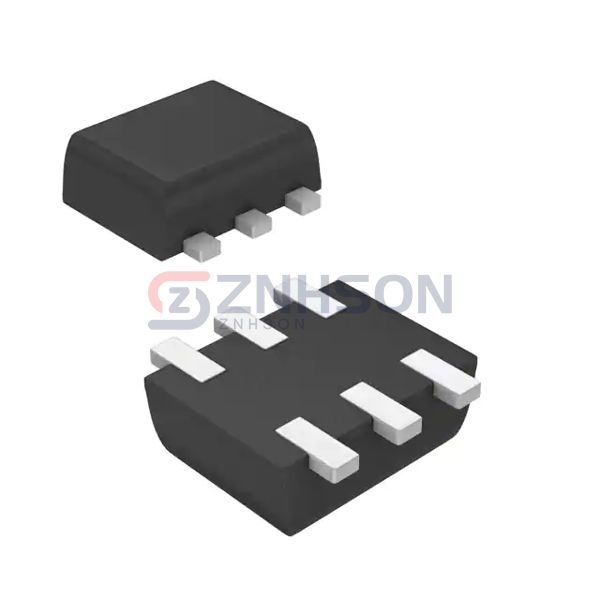

EMF21-7
Diodes Incorporated
Diodes Incorporated
TRANS NPN PREBIAS/PNP SOT563
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EMF21-7 from Diodes Incorporated is a versatile pre-biased BJT array designed to meet the needs of diverse electronic applications. Featuring matched transistors and built-in resistors, this product enhances circuit performance while reducing design complexity. It is commonly used in audio amplifiers, power converters, and automotive electronics. Diodes Incorporated's commitment to quality ensures that the EMF21-7 operates flawlessly in both commercial and industrial settings. With its excellent thermal performance and high reliability, this transistor array is an essential component for any engineer's toolkit.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN Pre-Biased, 1 PNP
- Current - Collector (Ic) (Max): 100mA, 500mA
- Voltage - Collector Emitter Breakdown (Max): 50V, 12V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V / 270 @ 10mA, 2V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA / 250mV @ 10mA, 200mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz, 280MHz
- Power - Max: 300mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
