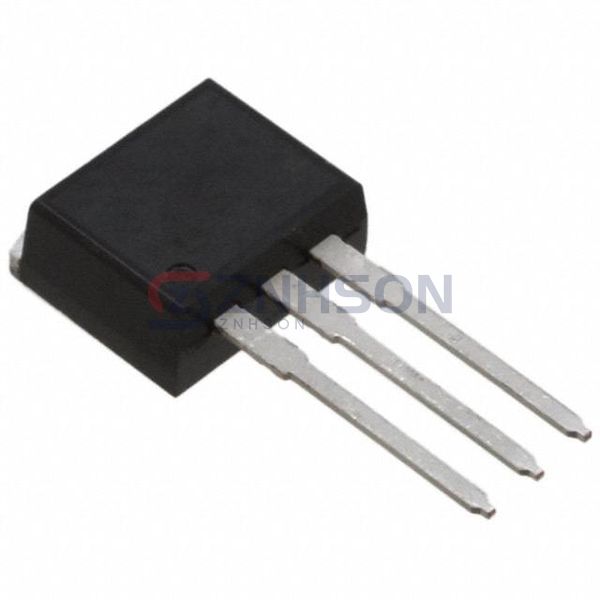

FDI150N10
onsemi
onsemi
MOSFET N-CH 100V 57A I2PAK
$3.09
Available to order
Reference Price (USD)
1+
$2.32000
10+
$2.10200
100+
$1.70060
800+
$1.21198
1,600+
$1.11716
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FDI150N10 from onsemi, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the FDI150N10 ensures reliable performance in demanding environments. Upgrade your circuit designs with onsemi's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 57A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 16mOhm @ 49A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 69 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4760 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 110W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: I2PAK (TO-262)
- Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA
