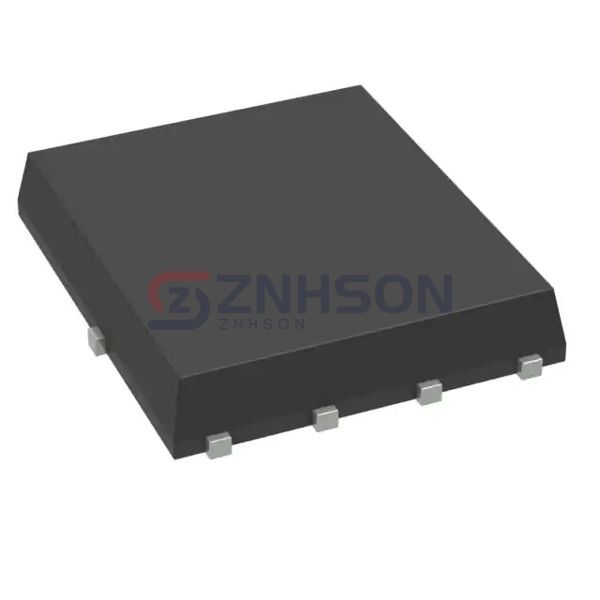

FDMS7692A
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET N-CH 30V 13.5A/28A 8PQFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.49280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FDMS7692A from Fairchild Semiconductor, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the FDMS7692A ensures reliable performance in demanding environments. Upgrade your circuit designs with Fairchild Semiconductor's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 13.5A (Ta), 28A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 22 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1350 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 27W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
