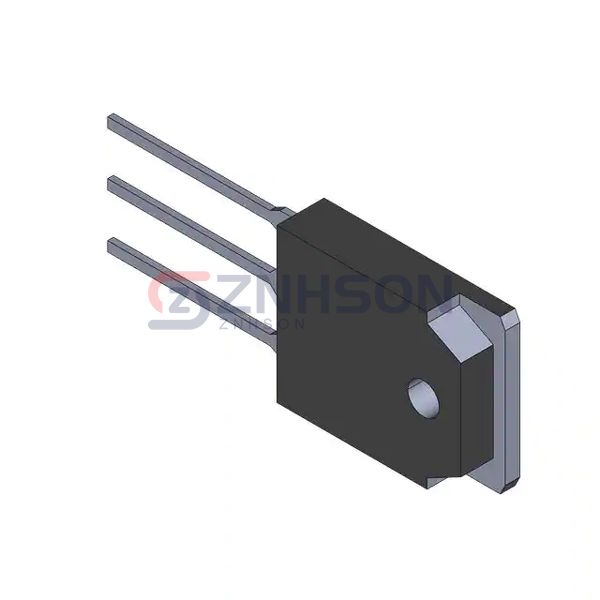

FFAF15U120DNTU
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER DIODE
$2.14
Available to order
Reference Price (USD)
1+
$2.14000
500+
$2.1186
1000+
$2.0972
1500+
$2.0758
2000+
$2.0544
2500+
$2.033
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the FFAF15U120DNTU by Fairchild Semiconductor represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Fairchild Semiconductor's patented junction design, the FFAF15U120DNTU achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1.2 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 3.5 V @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 100 ns
- Current - Reverse Leakage @ Vr: 15 µA @ 1.2 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
