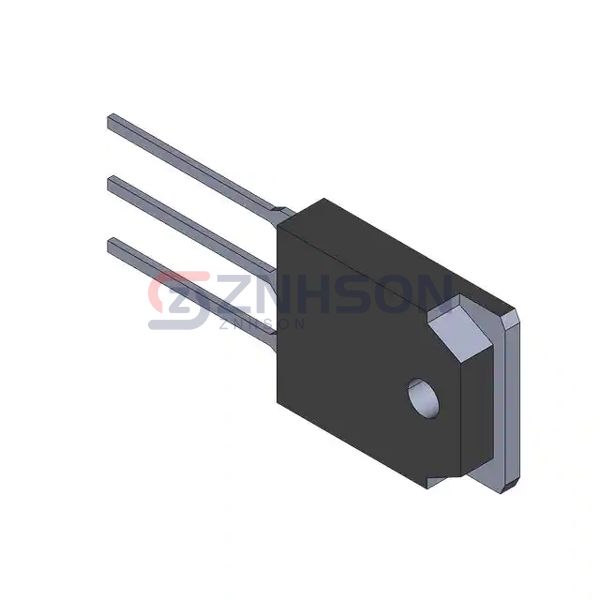

FGA120N30DTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 120A, 300V, N-CHANNEL
$1.40
Available to order
Reference Price (USD)
1+
$1.40000
500+
$1.386
1000+
$1.372
1500+
$1.358
2000+
$1.344
2500+
$1.33
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGA120N30DTU Single IGBT transistor by Fairchild Semiconductor is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the FGA120N30DTU provides consistent performance in varied conditions. Rely on Fairchild Semiconductor's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 300 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 1.4V @ 15V, 25A
- Power - Max: 290 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: -
- Test Condition: -
- Reverse Recovery Time (trr): 21 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
