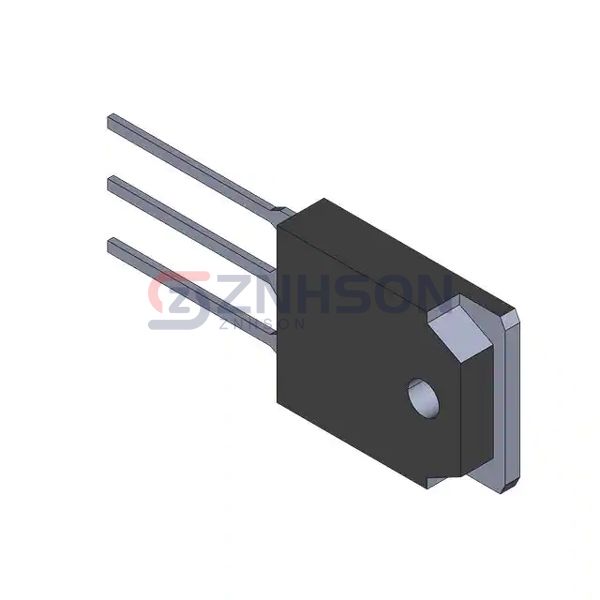

FGA40N60UFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 40A, 600V, N-CHANNEL
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FGA40N60UFDTU Single IGBT transistor by Fairchild Semiconductor, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the FGA40N60UFDTU ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the FGA40N60UFDTU for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 3V @ 15V, 20A
- Power - Max: 160 W
- Switching Energy: 470µJ (on), 130µJ (off)
- Input Type: Standard
- Gate Charge: 77 nC
- Td (on/off) @ 25°C: 15ns/65ns
- Test Condition: 300V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 95 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
