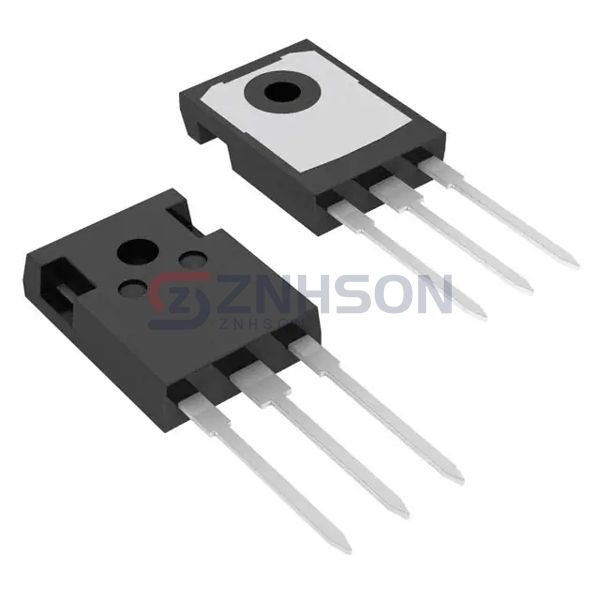

FGH20N60SFDTU
onsemi
onsemi
IGBT FIELD STOP 600V 40A TO247-3
$3.80
Available to order
Reference Price (USD)
1+
$3.03000
10+
$2.72900
450+
$2.08051
900+
$1.83112
1,350+
$1.53188
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH20N60SFDTU by onsemi is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With onsemi's reputation for quality, the FGH20N60SFDTU is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.8V @ 15V, 20A
- Power - Max: 165 W
- Switching Energy: 370µJ (on), 160µJ (off)
- Input Type: Standard
- Gate Charge: 65 nC
- Td (on/off) @ 25°C: 13ns/90ns
- Test Condition: 400V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 34 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
