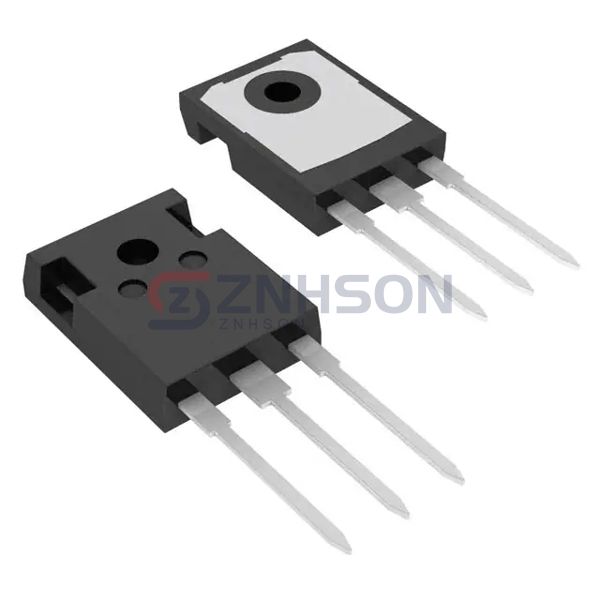

FGH30N6S2D
onsemi
onsemi
IGBT 600V 45A 167W TO247
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FGH30N6S2D Single IGBT transistor by onsemi, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the FGH30N6S2D ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the FGH30N6S2D for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 45 A
- Current - Collector Pulsed (Icm): 108 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 12A
- Power - Max: 167 W
- Switching Energy: 55µJ (on), 100µJ (off)
- Input Type: Standard
- Gate Charge: 23 nC
- Td (on/off) @ 25°C: 6ns/40ns
- Test Condition: 390V, 12A, 10Ohm, 15V
- Reverse Recovery Time (trr): 46 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
