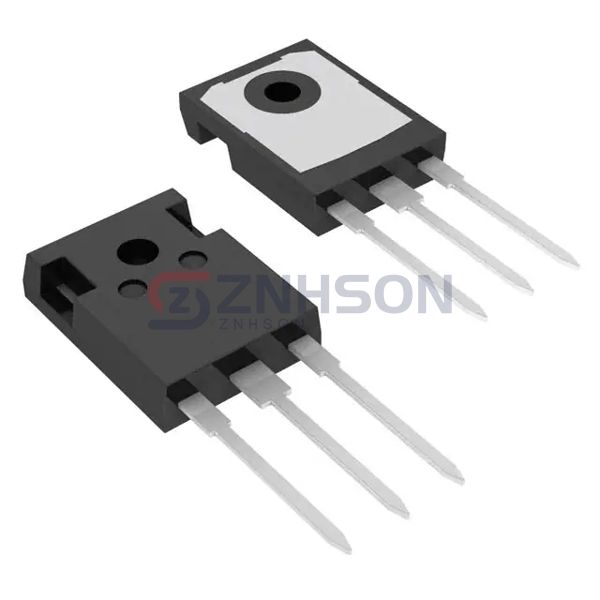

FGH40N6S2D
onsemi
onsemi
IGBT 600V 75A 290W TO247
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH40N6S2D Single IGBT transistor by onsemi is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the FGH40N6S2D provides consistent performance in varied conditions. Rely on onsemi's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 75 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 20A
- Power - Max: 290 W
- Switching Energy: 115µJ (on), 195µJ (off)
- Input Type: Standard
- Gate Charge: 35 nC
- Td (on/off) @ 25°C: 8ns/35ns
- Test Condition: 390V, 20A, 3Ohm, 15V
- Reverse Recovery Time (trr): 48 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
