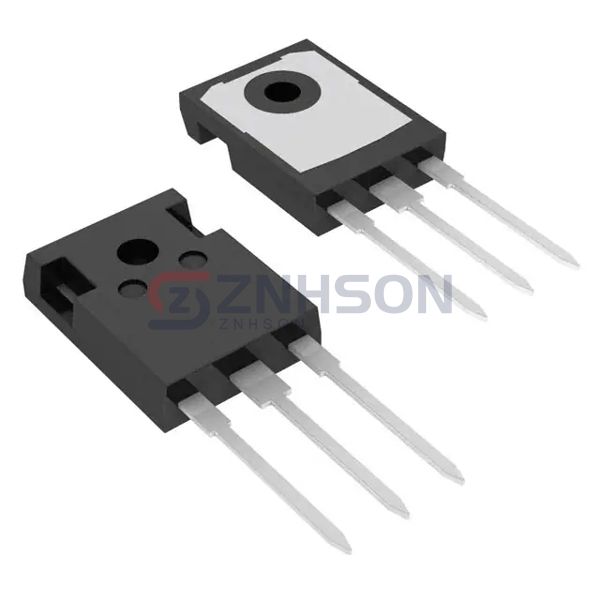

FGH60N60UFDTU-F085
onsemi
onsemi
IGBT 600V 120A 298W TO247
$0.00
Available to order
Reference Price (USD)
1+
$6.54000
10+
$5.90800
450+
$4.67153
900+
$4.25933
1,350+
$3.70974
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the FGH60N60UFDTU-F085 Single IGBT transistor from onsemi. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the FGH60N60UFDTU-F085 ensures precision and reliability. onsemi's cutting-edge technology guarantees a component that meets the highest industry standards. Choose FGH60N60UFDTU-F085 for efficient and durable power solutions.
Specifications
- Product Status: Obsolete
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 60A
- Power - Max: 298 W
- Switching Energy: 2.47mJ (on), 810µJ (off)
- Input Type: Standard
- Gate Charge: 192 nC
- Td (on/off) @ 25°C: 29ns/138ns
- Test Condition: 400V, 60A, 5Ohm, 15V
- Reverse Recovery Time (trr): 76 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
STMicroelectronics
STGW35NC60WD
IXYS
IXGQ96N30TCD1
Microsemi Corporation

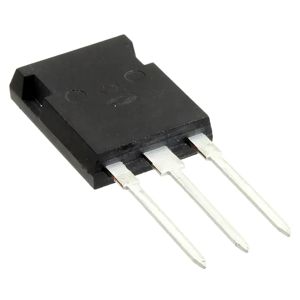

APT15GP90BG
Infineon Technologies
IRGP4269D-EPBF
STMicroelectronics
STGB3HF60HD
STMicroelectronics

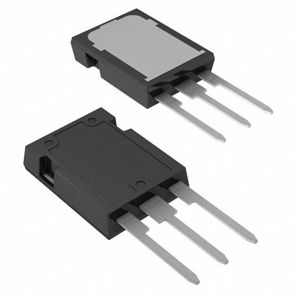

STGY40NC60VD
IXYS

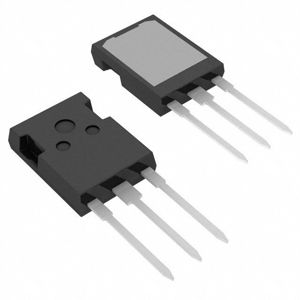

IXGX64N60B3D1
Renesas Electronics America Inc

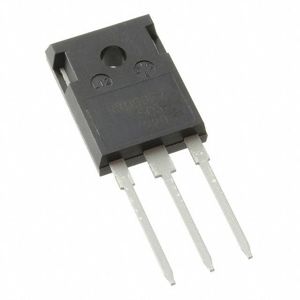

RJH1CF6RDPQ-80#T2
