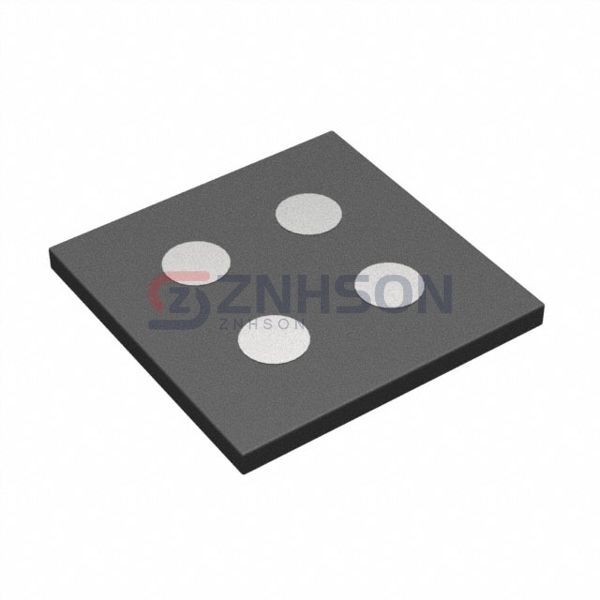

FJ4B01120L1
Panasonic Electronic Components
Panasonic Electronic Components
MOSFET P-CH 12V 2.6A ULGA004
$0.77
Available to order
Reference Price (USD)
1,000+
$0.29920
2,000+
$0.27115
5,000+
$0.26180
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FJ4B01120L1 from Panasonic Electronic Components, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the FJ4B01120L1 ensures reliable performance in demanding environments. Upgrade your circuit designs with Panasonic Electronic Components's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 2.6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 51mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 2mA
- Gate Charge (Qg) (Max) @ Vgs: 10.7 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 814 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 370mW (Ta)
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: ULGA004-W-1010-RA01
- Package / Case: 4-XFLGA, CSP
Related Products
Infineon Technologies
IPB107N20N3GATMA1
Nexperia USA Inc.
BUK753R1-40E,127
Nexperia USA Inc.
PSMN8R0-40PS,127
Infineon Technologies
BUZ32HXKSA1
Infineon Technologies
IPD075N03LGATMA1
Texas Instruments

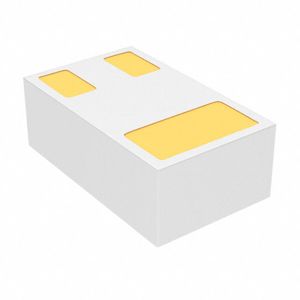

CSD17381F4
onsemi
FQB12P20TM
Infineon Technologies
IRF1010ZSTRLPBF
Vishay Siliconix

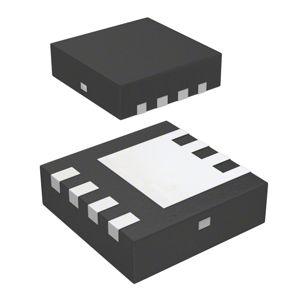

SISS10ADN-T1-GE3
