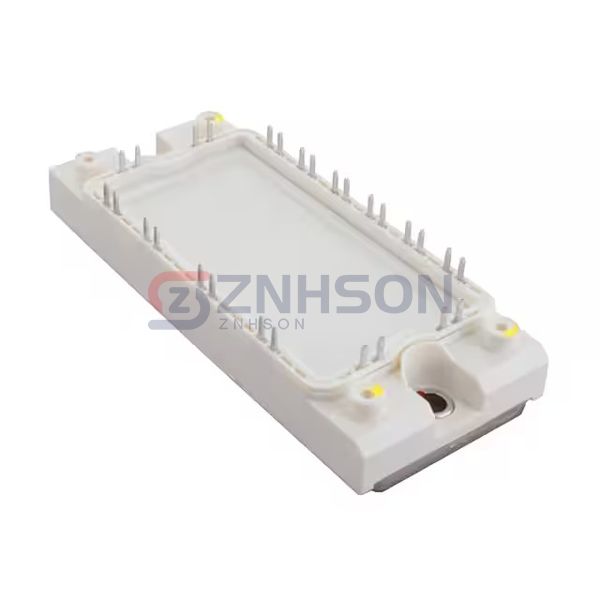

FS75R06KE3BPSA1
Infineon Technologies
Infineon Technologies
LOW POWER ECONO AG-ECONO2B-311
$115.42
Available to order
Reference Price (USD)
1+
$115.42000
500+
$114.2658
1000+
$113.1116
1500+
$111.9574
2000+
$110.8032
2500+
$109.649
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's FS75R06KE3BPSA1 represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the FS75R06KE3BPSA1 in industrial servo drives or medium-voltage frequency converters. Trust Infineon Technologies's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Full Bridge Inverter
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 75 A
- Power - Max: 250 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 75A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 4.6 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: AG-ECONO2B
