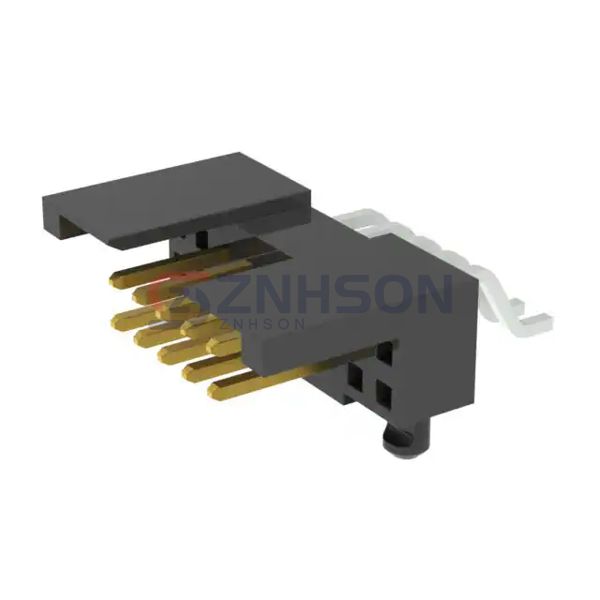

FSH-105-04-L-DH-SL
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 10POS 1.27MM
$3.81
Available to order
Reference Price (USD)
1+
$2.34000
10+
$2.12200
100+
$1.81860
500+
$1.51550
1,000+
$1.29900
5,000+
$1.15178
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FSH-105-04-L-DH-SL male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.145" (3.70mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.155" (3.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: End Shrouds, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 2.6A per Contact
- Voltage Rating: -
