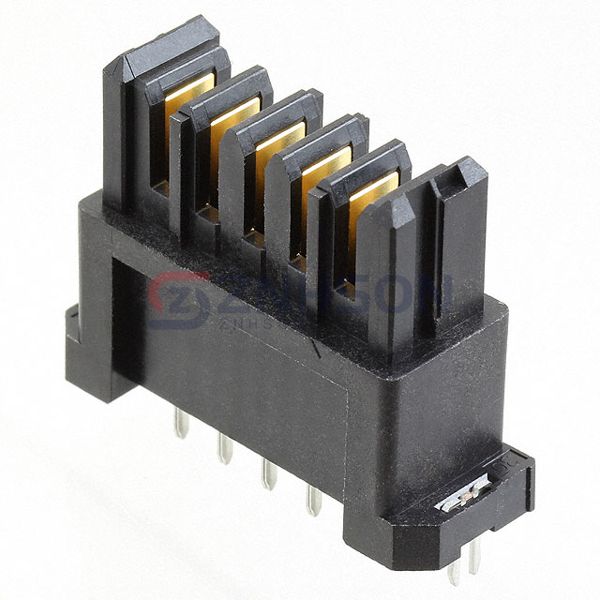

FX30B-5P-3.81DSA30

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Blade
• Pitch - Mating: 0.150" (3.81mm)
• Number of Positions: 5
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Shrouded - 2 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: -
• Contact Length - Post: 0.130" (3.30mm)
• Overall Contact Length: -
• Insulation Height: 0.953" (24.20mm)
• Contact Shape: Rectangular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 3.90µin (0.099µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Polyamide (PA), Nylon
• Features: Board Guide, Board Lock
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 13A
• Voltage Rating: 250V
