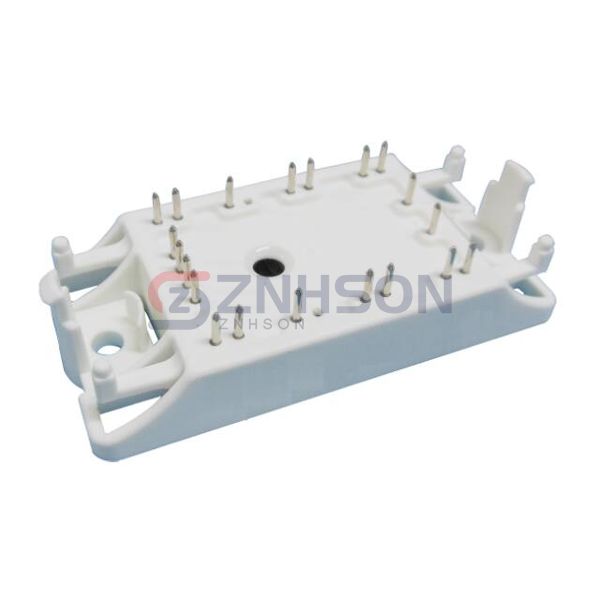

GSID080A120B1A5
SemiQ
SemiQ
IGBT MOD 1200V 160A 1710W
$0.00
Available to order
Reference Price (USD)
10+
$58.36300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
SemiQ's GSID080A120B1A5 stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the GSID080A120B1A5 enables higher power density in MRI gradient amplifiers. Choose SemiQ for IGBT modules that push performance boundaries.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 160 A
- Power - Max: 1710 W
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 80A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 7 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
