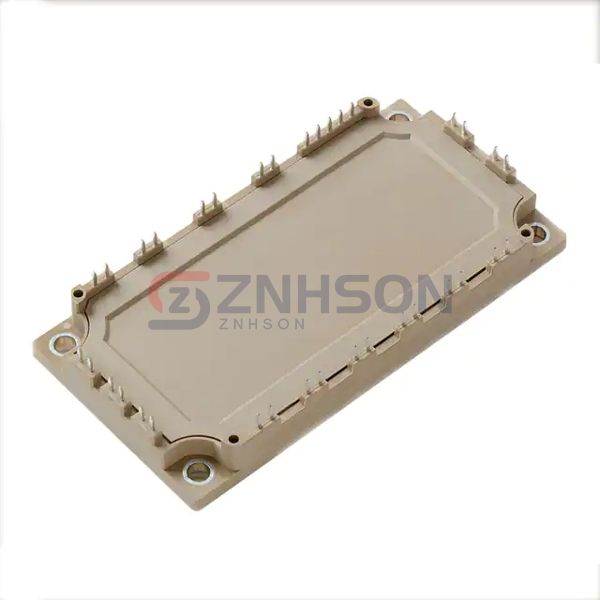

MG12100W-XN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MOD 1200V 140A 450W
$0.00
Available to order
Reference Price (USD)
1+
$162.81000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Littelfuse Inc.'s MG12100W-XN2MM sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the MG12100W-XN2MM in your traction inverters or high-energy physics experiments for unparalleled performance. Trust Littelfuse Inc. to deliver cutting-edge IGBT solutions with the MG12100W-XN2MM power module.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 140 A
- Power - Max: 450 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 100A (Typ)
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 7.1 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
