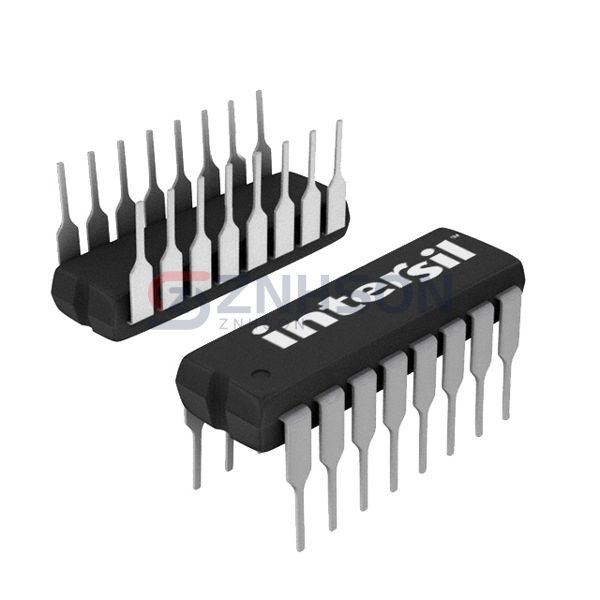

HI1-5047-5
Renesas Electronics America Inc
Renesas Electronics America Inc
IC SWITCH 4PST 16CDIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HI1-5047-5 by Renesas Electronics America Inc represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The HI1-5047-5 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: 4PST - NO
- Multiplexer/Demultiplexer Circuit: -
- Number of Circuits: 1
- On-State Resistance (Max): 75Ohm
- Channel-to-Channel Matching (ΔRon): 2Ohm
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 500ns, 500ns
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 11pF, 11pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -88dB @ 100kHz
- Operating Temperature: 0°C ~ 75°C (TA)
- Mounting Type: Through Hole
- Package / Case: 16-CDIP (0.300", 7.62mm)
- Supplier Device Package: 16-CERDIP
