HIF3BA-14PA-2.54DSA(63)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 14POS 2.54MM
$3.65
Available to order
Reference Price (USD)
1+
$3.65000
500+
$3.6135
1000+
$3.577
1500+
$3.5405
2000+
$3.504
2500+
$3.4675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF3BA-14PA-2.54DSA(63) by Hirose Electric Co Ltd is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the HIF3BA-14PA-2.54DSA(63) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Hirose Electric Co Ltd ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.701" (17.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 200V
Related Products
Amphenol ICC (FCI)
76385-307LF
Samtec Inc.
TMM-118-01-S-Q-RA
TE Connectivity AMP Connectors
9-103326-0-14
Preci-Dip
800-80-007-40-001191
TE Connectivity AMP Connectors
1744037-6
Amphenol ICC (FCI)
10119109-372005LF
Molex
0444280803
Samtec Inc.

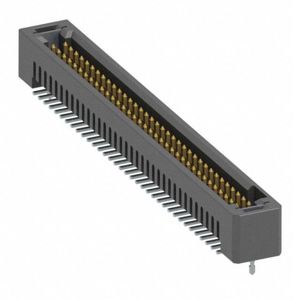

TFM-135-02-L-D-WT-K-TR
