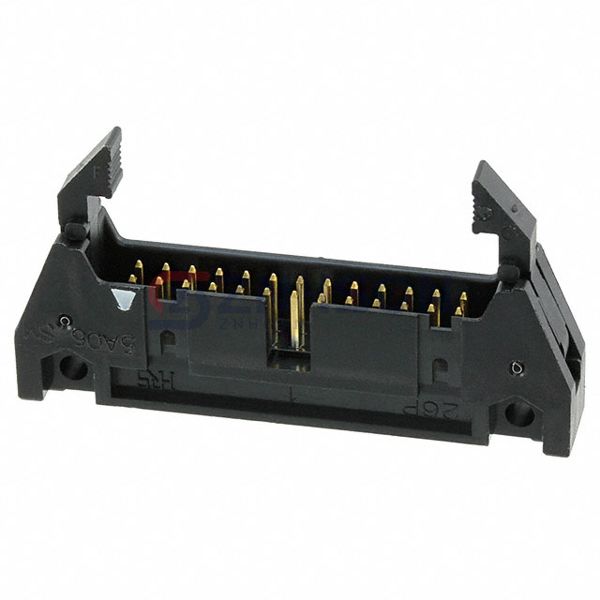

HIF3BA-26PA-2.54DS(63)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 26POS 2.54MM
$4.62
Available to order
Reference Price (USD)
1+
$4.62000
500+
$4.5738
1000+
$4.5276
1500+
$4.4814
2000+
$4.4352
2500+
$4.389
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF3BA-26PA-2.54DS(63) male pin header by Hirose Electric Co Ltd provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Hirose Electric Co Ltd guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 200V
Related Products
Harwin Inc.
M80-5501005
Amphenol ICC (FCI)
68000-603
Würth Elektronik
621314284521
Preci-Dip
351-10-131-00-005101
3M
929836-02-27
Samtec Inc.
HTSW-122-07-LM-D
Molex
15-91-1043
Molex
1054311102
Molex

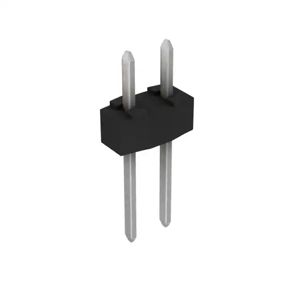

0901310121
