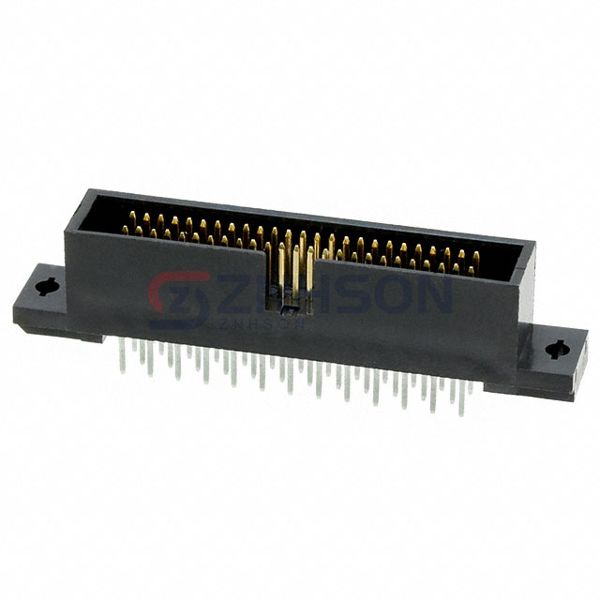

HIF6B-50PA-1.27DSA(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 50POS 1.27MM
$5.70
Available to order
Reference Price (USD)
1+
$5.43000
90+
$4.55700
180+
$4.34000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF6B-50PA-1.27DSA(71) by Hirose Electric Co Ltd is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the HIF6B-50PA-1.27DSA(71) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Hirose Electric Co Ltd ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.205" (5.21mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.453" (11.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.5A
- Voltage Rating: 300V
Related Products
Adam Tech
2PH2-14-UA
Molex
0022053271
Amphenol Sine Systems Corp
ATF13-4P-BM31
Samtec Inc.
TMS-103-01-L-S
Molex
0530470610
TE Connectivity AMP Connectors

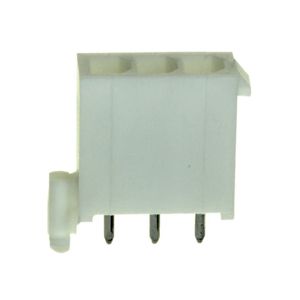

1-770873-0
Amphenol ICC (FCI)

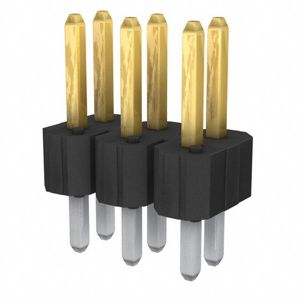

79425-506H
Samtec Inc.

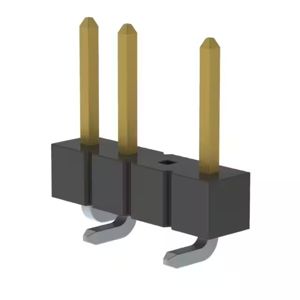

TSM-104-01-S-SV-002
