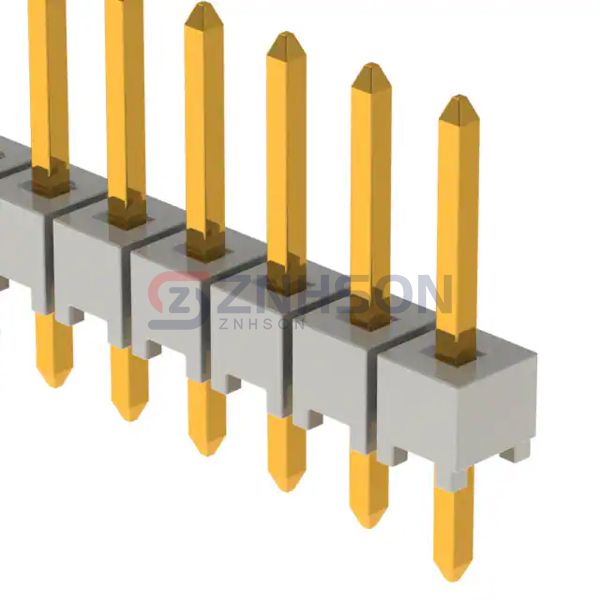

HTSW-146-07-G-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 46POS 2.54MM
$7.56
Available to order
Reference Price (USD)
1+
$4.50000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the HTSW-146-07-G-S rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 46
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.430" (10.92mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: -
Related Products
Preci-Dip
852-10-038-20-001101
Samtec Inc.
TSM-110-02-S-SH-A-P
Samtec Inc.
TSW-109-07-G-D
Amphenol ICC (FCI)
69168-118HLF
Sullins Connector Solutions
NRPN401PARN-RC
Amphenol ICC (FCI)
86503-406HLF

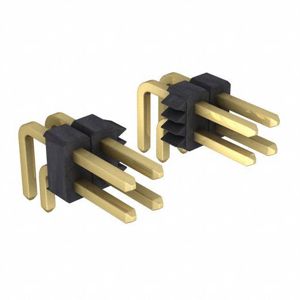

Preci-Dip
892-70-052-20-001101
Samtec Inc.

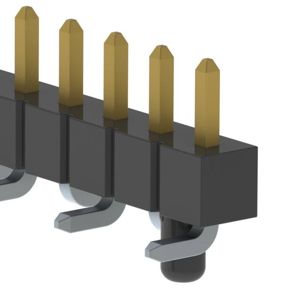

TSM-112-04-L-SV-A
