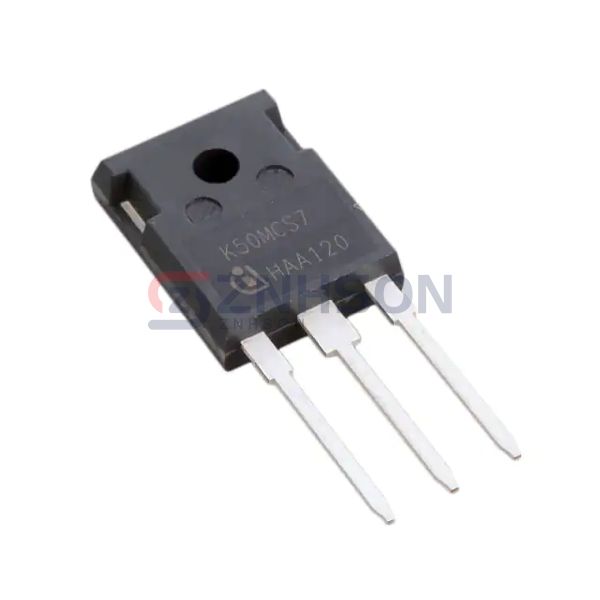

IKW50N120CS7XKSA1
Infineon Technologies
Infineon Technologies
INDUSTRY 14 PG-TO247-3
$11.04
Available to order
Reference Price (USD)
1+
$11.04000
500+
$10.9296
1000+
$10.8192
1500+
$10.7088
2000+
$10.5984
2500+
$10.488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IKW50N120CS7XKSA1 by Infineon Technologies is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the IKW50N120CS7XKSA1 delivers robust performance. Infineon Technologies's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate IKW50N120CS7XKSA1 into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 82 A
- Current - Collector Pulsed (Icm): 150 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 50A
- Power - Max: 428 W
- Switching Energy: 2.8mJ (on), 2.2mJ (off)
- Input Type: Standard
- Gate Charge: 290 nC
- Td (on/off) @ 25°C: 29ns/170ns
- Test Condition: 600V, 50A, 2.3Ohm, 15V
- Reverse Recovery Time (trr): 165 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3
