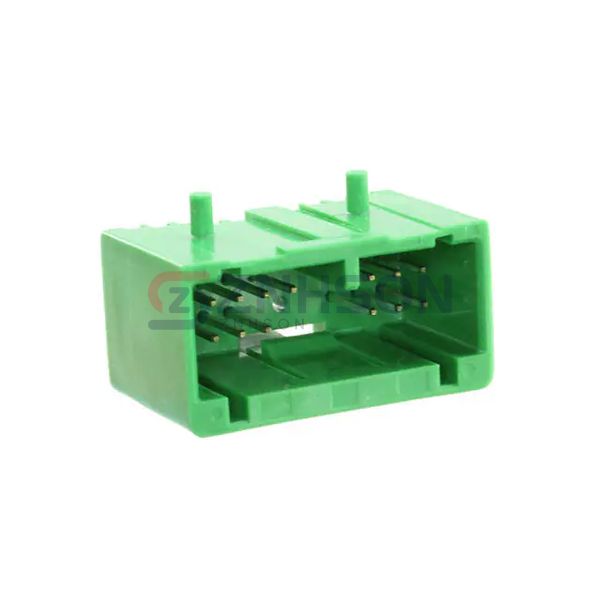

IL-AG5-16P-D3T2-A
JAE Electronics
JAE Electronics
CONN HEADER VERT 16POS 2.5MM
$3.07
Available to order
Reference Price (USD)
1+
$2.73000
10+
$2.61600
100+
$2.18000
500+
$1.85300
1,000+
$1.58050
5,000+
$1.41700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IL-AG5-16P-D3T2-A by JAE Electronics is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JAE Electronics delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.331" (8.40mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.594" (15.09mm)
- Insulation Height: 0.717" (18.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Green
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-2040557-9
Sullins Connector Solutions
PBC28SACN
Sullins Connector Solutions
PBC05DACN
Amphenol ICC (FCI)
77311-111-36LF
Samtec Inc.
TMM-117-05-G-D-SM-A
NorComp Inc.
27646402RP2
Amphenol Sine Systems Corp
AT04-08PD-BM04
Samtec Inc.

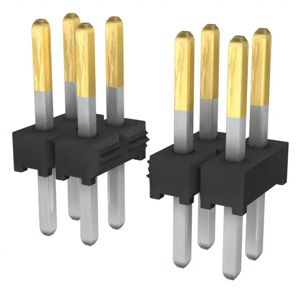

TMM-110-03-F-D
Samtec Inc.

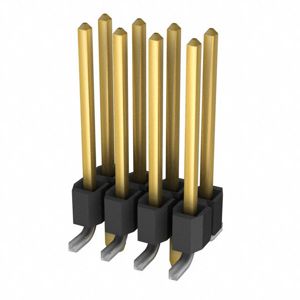

TSM-104-03-F-DV-A-P-TR
