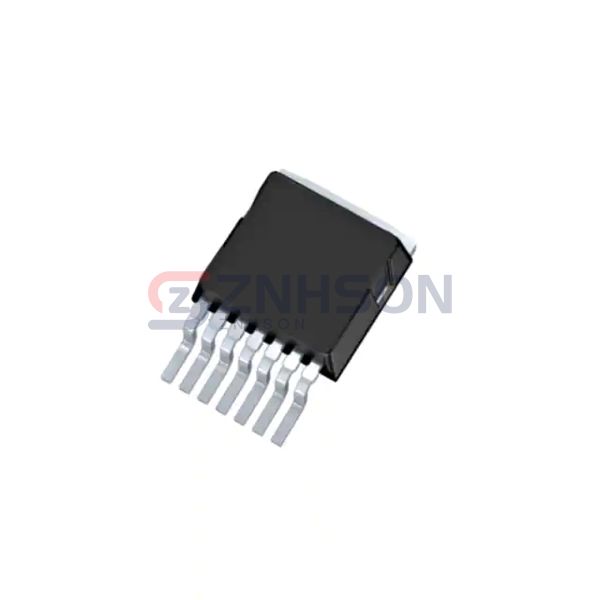

IMBG120R090M1HXTMA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1.2KV 26A TO263
$14.13
Available to order
Reference Price (USD)
1+
$14.13000
500+
$13.9887
1000+
$13.8474
1500+
$13.7061
2000+
$13.5648
2500+
$13.4235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the IMBG120R090M1HXTMA1 single MOSFET from Infineon Technologies. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Infineon Technologies's IMBG120R090M1HXTMA1 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 26A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 125mOhm @ 8.5A, 18V
- Vgs(th) (Max) @ Id: 5.7V @ 3.7mA
- Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 18 V
- Vgs (Max): +18V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 763 pF @ 800 V
- FET Feature: Standard
- Power Dissipation (Max): 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-TO263-7-12
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
