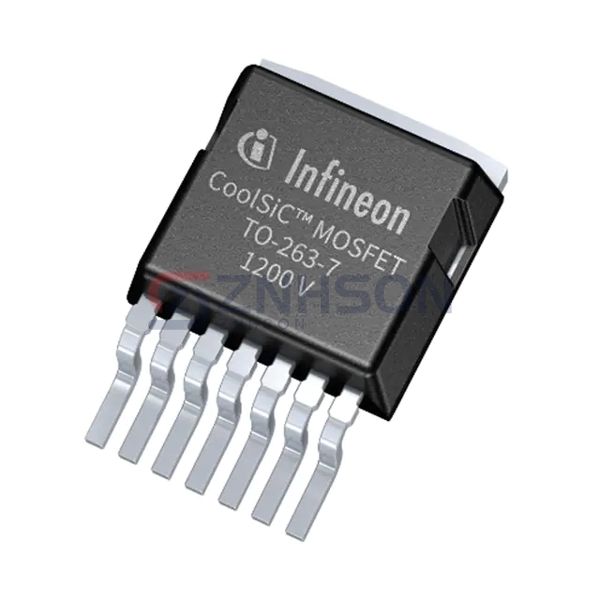

IMBG120R220M1HXTMA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1.2KV 13A TO263
$10.71
Available to order
Reference Price (USD)
1+
$10.71000
500+
$10.6029
1000+
$10.4958
1500+
$10.3887
2000+
$10.2816
2500+
$10.1745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IMBG120R220M1HXTMA1 single MOSFET from Infineon Technologies is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the IMBG120R220M1HXTMA1 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 294mOhm @ 4A, 18V
- Vgs(th) (Max) @ Id: 5.7V @ 1.6mA
- Gate Charge (Qg) (Max) @ Vgs: 9.4 nC @ 18 V
- Vgs (Max): +18V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 312 pF @ 800 V
- FET Feature: Standard
- Power Dissipation (Max): 83W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-TO263-7-12
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
