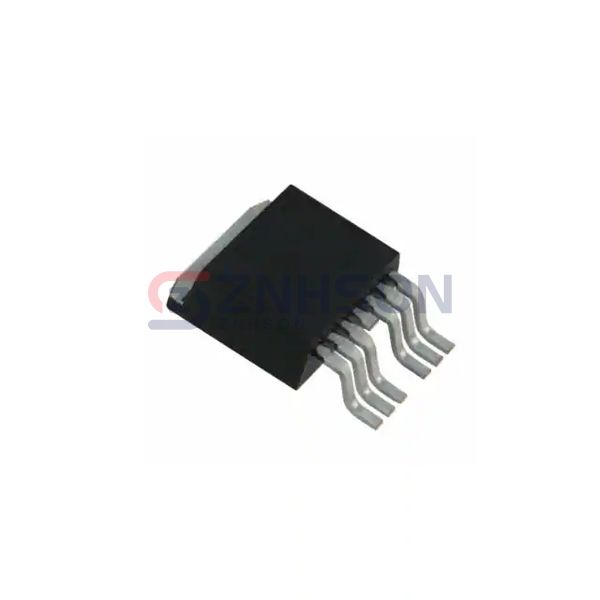

IPB036N12N3GATMA1
Infineon Technologies
Infineon Technologies
MOSFET N-CH 120V 180A TO263-7
$7.32
Available to order
Reference Price (USD)
1,000+
$3.82105
2,000+
$3.63000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the IPB036N12N3GATMA1 by Infineon Technologies, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The IPB036N12N3GATMA1 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Infineon Technologies.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 120 V
- Current - Continuous Drain (Id) @ 25°C: 180A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.6mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 4V @ 270µA
- Gate Charge (Qg) (Max) @ Vgs: 211 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 13800 pF @ 60 V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-TO263-7
- Package / Case: TO-263-7, D²Pak (6 Leads + Tab)
