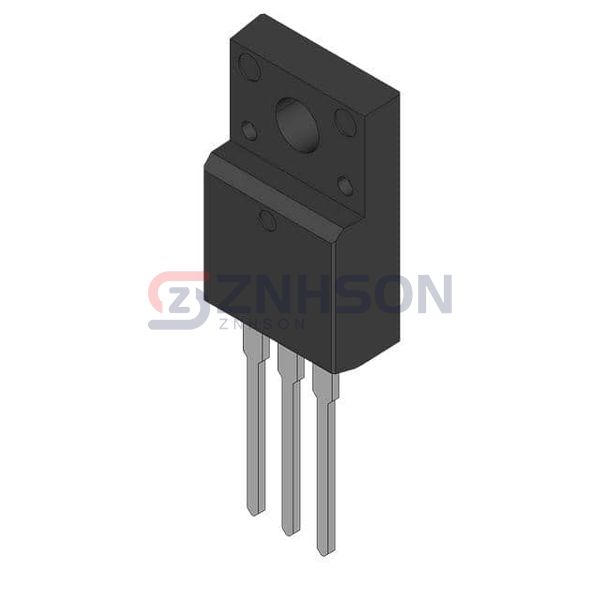

IRFS820B
Fairchild Semiconductor
Fairchild Semiconductor
N-CHANNEL POWER MOSFET
$0.18
Available to order
Reference Price (USD)
1+
$0.18000
500+
$0.1782
1000+
$0.1764
1500+
$0.1746
2000+
$0.1728
2500+
$0.171
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IRFS820B from Fairchild Semiconductor, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the IRFS820B ensures reliable performance in demanding environments. Upgrade your circuit designs with Fairchild Semiconductor's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 500 V
- Current - Continuous Drain (Id) @ 25°C: 2.5A (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.6Ohm @ 1.25A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 610 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 33W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220F-3
- Package / Case: TO-220-3 Full Pack
Related Products
Infineon Technologies
IRF1405PBF
onsemi
NTD110N02RT4G
Vishay Siliconix
SIR188DP-T1-RE3
IXYS
IXFL38N100P
Alpha & Omega Semiconductor Inc.
AOB160A60L
onsemi
NVD6824NLT4G-VF01
Diodes Incorporated
DMN5L06WK-7
Vishay Siliconix
SQJA37EP-T1_GE3
Vishay Siliconix

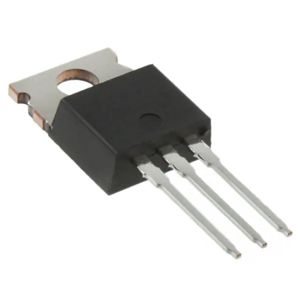

SIHP15N80AEF-GE3
