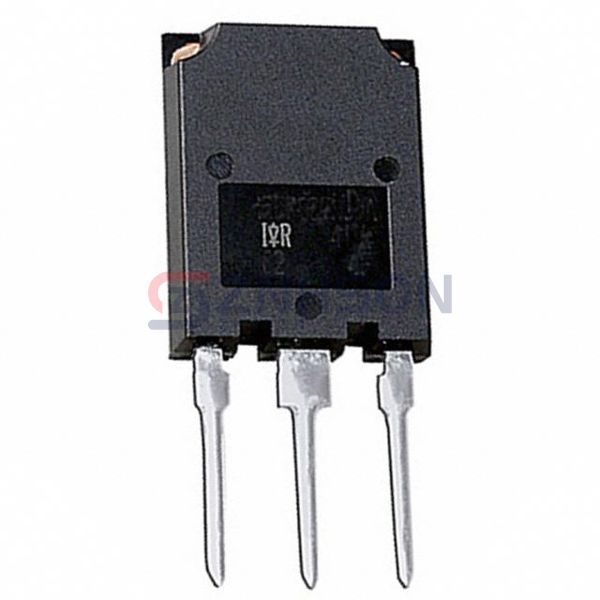

IRG4PSH71KDPBF
Infineon Technologies
Infineon Technologies
IGBT 1200V 78A SUPER247
$0.00
Available to order
Reference Price (USD)
1+
$14.93000
10+
$13.72400
100+
$11.59110
500+
$10.31114
1,000+
$9.48150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRG4PSH71KDPBF from Infineon Technologies is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose IRG4PSH71KDPBF for superior performance in your next power electronics project.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 78 A
- Current - Collector Pulsed (Icm): 156 A
- Vce(on) (Max) @ Vge, Ic: 3.9V @ 15V, 42A
- Power - Max: 350 W
- Switching Energy: 5.68mJ (on), 3.23mJ (off)
- Input Type: Standard
- Gate Charge: 410 nC
- Td (on/off) @ 25°C: 67ns/230ns
- Test Condition: 800V, 42A, 5Ohm, 15V
- Reverse Recovery Time (trr): 107 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-274AA
- Supplier Device Package: SUPER-247™ (TO-274AA)
