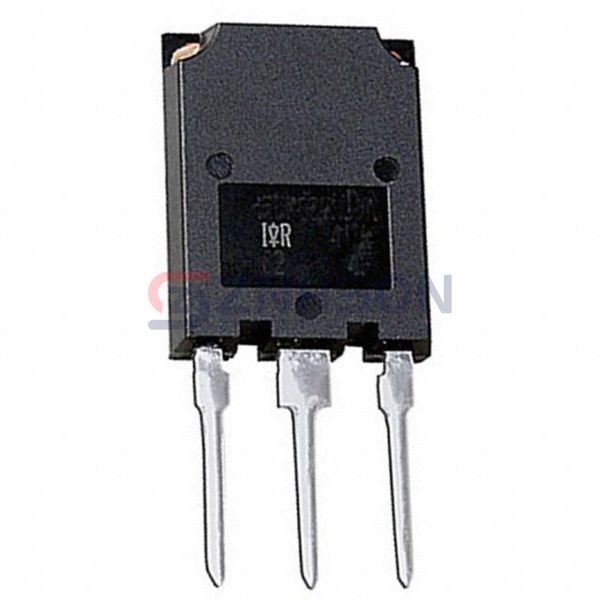

IRG4PSH71UD
Infineon Technologies
Infineon Technologies
IGBT 1200V 99A 350W SUPER247
$0.00
Available to order
Reference Price (USD)
25+
$29.50800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRG4PSH71UD by Infineon Technologies is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Infineon Technologies's reputation for quality, the IRG4PSH71UD is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 99 A
- Current - Collector Pulsed (Icm): 200 A
- Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 70A
- Power - Max: 350 W
- Switching Energy: 8.8mJ (on), 9.4mJ (off)
- Input Type: Standard
- Gate Charge: 380 nC
- Td (on/off) @ 25°C: 46ns/250ns
- Test Condition: 960V, 70A, 5Ohm, 15V
- Reverse Recovery Time (trr): 110 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-274AA
- Supplier Device Package: SUPER-247™ (TO-274AA)
