IRG7PH42UD2PBF
Infineon Technologies
Infineon Technologies
IGBT 1200V 60A 321W TO247AC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRG7PH42UD2PBF Single IGBT transistor by Infineon Technologies is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the IRG7PH42UD2PBF provides consistent performance in varied conditions. Rely on Infineon Technologies's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 90 A
- Vce(on) (Max) @ Vge, Ic: 2.02V @ 15V, 30A
- Power - Max: 321 W
- Switching Energy: 1.32mJ (off)
- Input Type: Standard
- Gate Charge: 234 nC
- Td (on/off) @ 25°C: -/233ns
- Test Condition: 600V, 30A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
Related Products
Infineon Technologies
AIHD06N60RATMA1
onsemi
FGA180N33ATTU
Infineon Technologies
IRGR4045DTRLPBF
Infineon Technologies
IHW30N135R3FKSA1
onsemi
NGB8206N
IXYS
IXGH16N60B2D1
IXYS

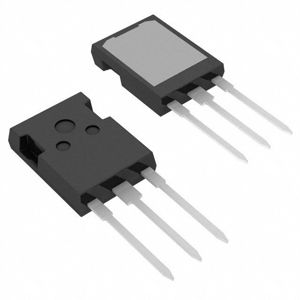

IXGX50N60B2D1
