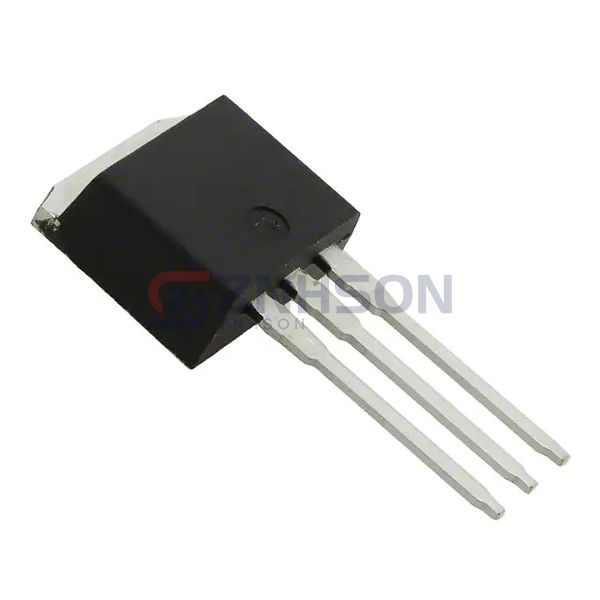

IRL3502L
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 20V 110A TO262-3
$0.00
Available to order
Reference Price (USD)
250+
$2.29956
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the IRL3502L by Vishay Siliconix, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The IRL3502L stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Vishay Siliconix.
Specifications
- Product Status: Discontinued at Digi-Key
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 110A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 7V
- Rds On (Max) @ Id, Vgs: 7mOhm @ 64A, 7V
- Vgs(th) (Max) @ Id: 700mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 110 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 4700 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 140W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-262-3
- Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA
