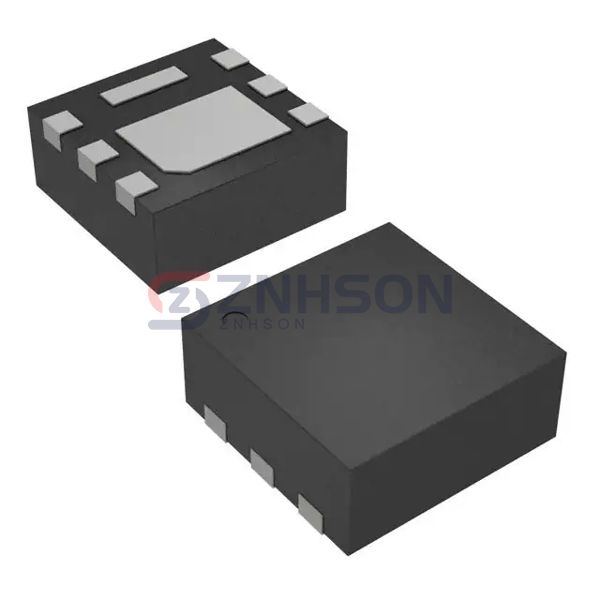

IRL80HS120
Infineon Technologies
Infineon Technologies
MOSFET N-CH 80V 12.5A 6PQFN
$1.34
Available to order
Reference Price (USD)
4,000+
$0.46105
8,000+
$0.44053
12,000+
$0.42587
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRL80HS120 from Infineon Technologies redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the IRL80HS120 offers the precision and reliability you need. Trust Infineon Technologies to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 12.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 32mOhm @ 7.5A, 10V
- Vgs(th) (Max) @ Id: 2V @ 10µA
- Gate Charge (Qg) (Max) @ Vgs: 7 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 540 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 11.5W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-PQFN (2x2)
- Package / Case: 6-VDFN Exposed Pad
Related Products
Infineon Technologies
BTS112AE3045ANTMA1
Vishay Siliconix

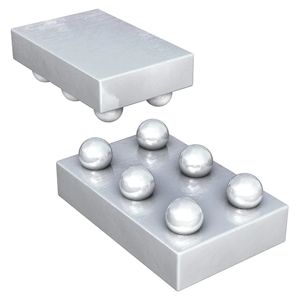

SI8483DB-T2-E1
STMicroelectronics
STW69N65M5-4
Vishay Siliconix

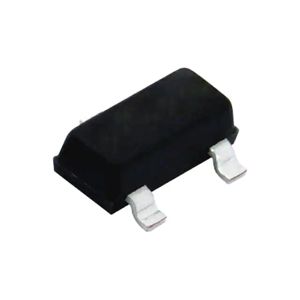

SI2302CDS-T1-BE3
STMicroelectronics
STD130N4F6AG
Diodes Incorporated
ZVP2106ASTZ
Infineon Technologies
IPD60R600P6ATMA1
STMicroelectronics

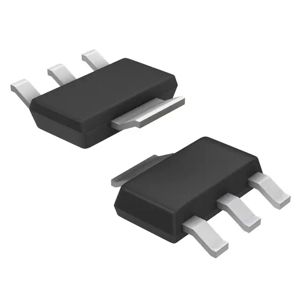

STN4NF20L
