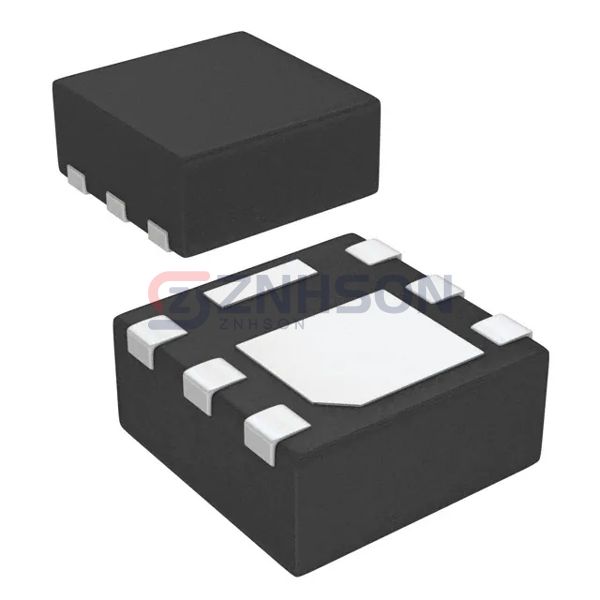

IRLHS2242TRPBF
Infineon Technologies
Infineon Technologies
MOSFET P-CH 20V 7.2A/15A 6PQFN
$0.68
Available to order
Reference Price (USD)
4,000+
$0.23444
8,000+
$0.21931
12,000+
$0.20419
28,000+
$0.19360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRLHS2242TRPBF by Infineon Technologies is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose Infineon Technologies for innovation you can depend on.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7.2A (Ta), 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 31mOhm @ 8.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.1V @ 10µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 10 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 877 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta), 9.6W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-PQFN (2x2)
- Package / Case: 6-PowerVDFN
