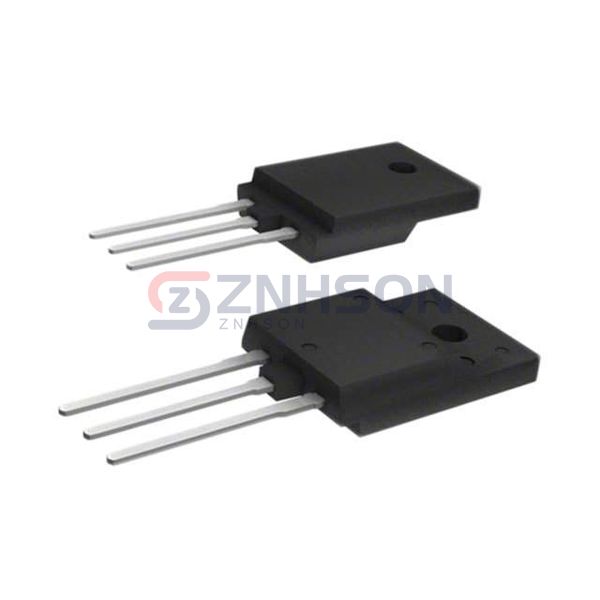

IRLI3803
Infineon Technologies
Infineon Technologies
MOSFET N-CH 30V 76A TO220AB FP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IRLI3803 from Infineon Technologies, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the IRLI3803 ensures reliable performance in demanding environments. Upgrade your circuit designs with Infineon Technologies's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 76A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 140 nC @ 4.5 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 5000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 63W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PG-TO220-FP
- Package / Case: TO-220-3 Full Pack
