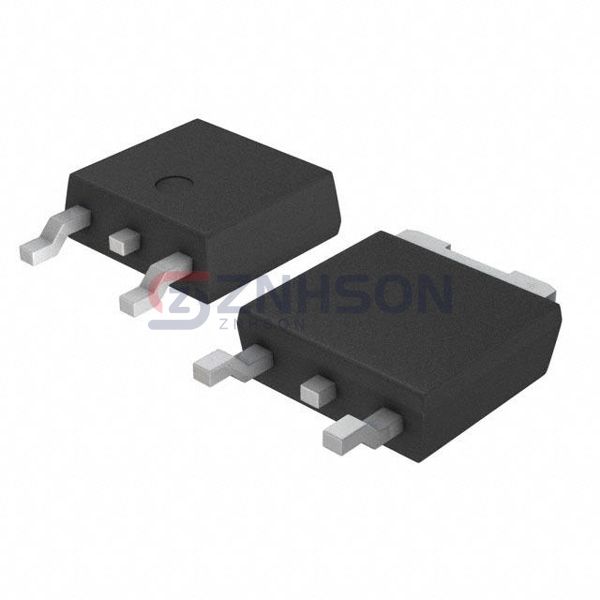

IRLR120TRPBF
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 100V 7.7A DPAK
$1.73
Available to order
Reference Price (USD)
1+
$1.73000
500+
$1.7127
1000+
$1.6954
1500+
$1.6781
2000+
$1.6608
2500+
$1.6435
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the IRLR120TRPBF by Vishay Siliconix, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the IRLR120TRPBF is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 7.7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4V, 5V
- Rds On (Max) @ Id, Vgs: 270mOhm @ 4.6A, 5V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 490 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 42W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D-Pak
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
