JANTX1N3024D-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$26.55
Available to order
Reference Price (USD)
1+
$26.55000
500+
$26.2845
1000+
$26.019
1500+
$25.7535
2000+
$25.488
2500+
$25.2225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N3024D-1/TR by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JANTX1N3024D-1/TR is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 15 V
- Tolerance: ±1%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 14 Ohms
- Current - Reverse Leakage @ Vr: 10 µA @ 11.4 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-41
Related Products
Microchip Technology
SMBJ5930A/TR13
Taiwan Semiconductor Corporation
BZV55B3V0 L0G
NTE Electronics, Inc
NTE5065A
onsemi
1N5347BG
Microchip Technology
1N4739CP/TR12
Vishay General Semiconductor - Diodes Division
BZT52B8V2-HE3-08
onsemi
SMBZ2606-6LT3
Nexperia USA Inc.

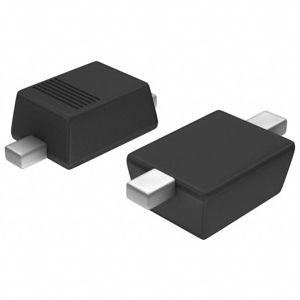

PZU6.2B3,115
Vishay General Semiconductor - Diodes Division

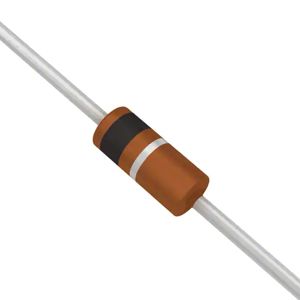

1N5251B-TR
