JANTX1N5522D-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$21.22
Available to order
Reference Price (USD)
1+
$21.22500
500+
$21.01275
1000+
$20.8005
1500+
$20.58825
2000+
$20.376
2500+
$20.16375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5522D-1/TR by Microchip Technology is a high-quality single Zener diode, part of the Discrete Semiconductor Products family. Known for its precision and durability, this diode is perfect for voltage regulation in demanding environments. Key features include high power dissipation, low impedance, and excellent thermal stability. The JANTX1N5522D-1/TR is commonly used in industrial machinery, where it ensures consistent voltage levels for control systems and sensors. It is also a preferred choice for telecommunications equipment, maintaining signal clarity by preventing voltage drops. Moreover, it is employed in consumer electronics, such as wearables and tablets, to enhance device reliability.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 4.7 V
- Tolerance: ±1%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 22 Ohms
- Current - Reverse Leakage @ Vr: 2 µA @ 2 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
Related Products
Vishay General Semiconductor - Diodes Division
SMBZ5920B-E3/52
Vishay General Semiconductor - Diodes Division
MMSZ5264B-HE3-08
Microchip Technology
1N4101D-1
Microchip Technology
CDLL5946D
Panjit International Inc.
BZT52-B12_R1_00001
Renesas Electronics America Inc
HZU9.1B3TRF-E
Microchip Technology
JAN1N6331US
Microchip Technology

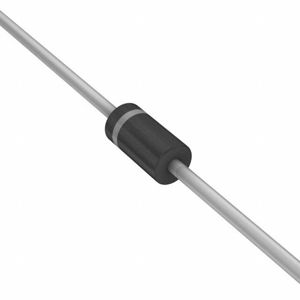

1N5921B
