JANTXV1N5536C-1
Microchip Technology
Microchip Technology
DIODE ZENER 16V 500MW DO35
$22.47
Available to order
Reference Price (USD)
100+
$18.48600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTXV1N5536C-1 from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the JANTXV1N5536C-1 is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 16 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 14.4 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
Related Products
Microsemi Corporation
1N5953DG
Diodes Incorporated
BZT52C22-7-F
Microchip Technology

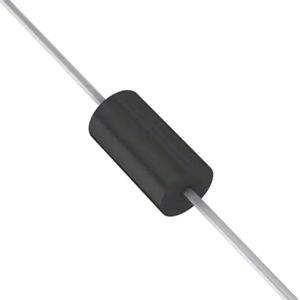

JAN1N3032C-1/TR
Microchip Technology

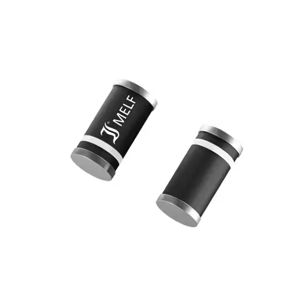

CDLL5246B/TR
Nexperia USA Inc.

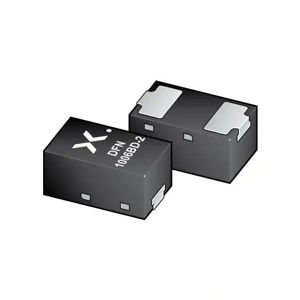

BZX8850S-C68YL
Vishay General Semiconductor - Diodes Division
BZG04-68-M3-18
Vishay General Semiconductor - Diodes Division

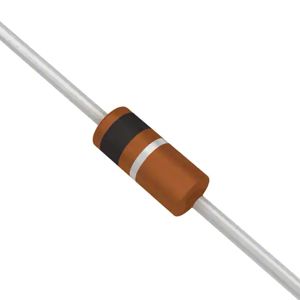

TZX36C-TAP
Microchip Technology

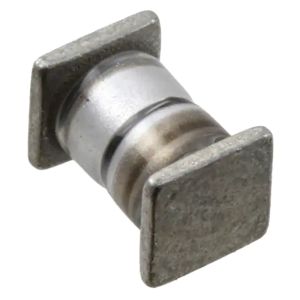

JANTXV1N6329US/TR
