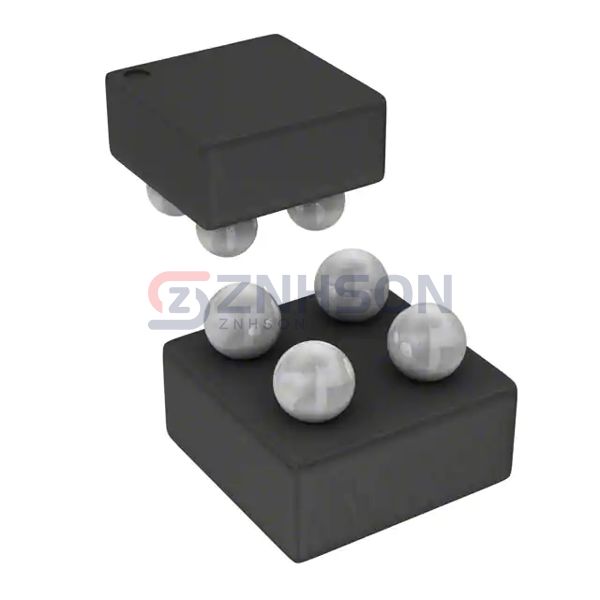

LD6806CX4/14P,315
NXP USA Inc.
NXP USA Inc.
IC REG LINEAR 1.4V 200MA 4WLCSP
$0.08
Available to order
Reference Price (USD)
1+
$0.08000
500+
$0.0792
1000+
$0.0784
1500+
$0.0776
2000+
$0.0768
2500+
$0.076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LD6806CX4/14P,315 from NXP USA Inc. is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the LD6806CX4/14P,315 provides the reliability you need.
As a member of the PMIC - Voltage Regulators - Linear family, the LD6806CX4/14P,315 excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications.
The LD6806CX4/14P,315 is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.4V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.1V @ 200mA
- Current - Output: 200mA
- Current - Quiescent (Iq): 100 µA
- Current - Supply (Max): 250 µA
- PSRR: 55dB (1kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 4-XFBGA, WLCSP
- Supplier Device Package: 4-WLCSP (0.76x0.76)
