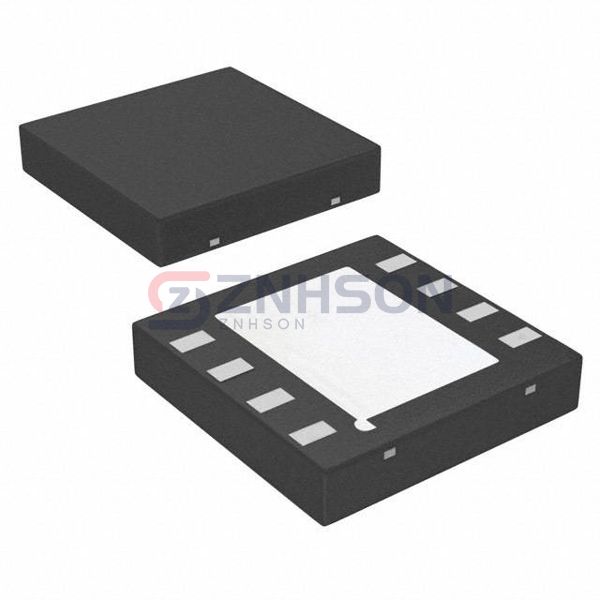

LM1086ILD-3.3/NOPB
Texas Instruments
Texas Instruments
IC REG LINEAR 3.3V 1.5A 8WSON
$2.38
Available to order
Reference Price (USD)
1,000+
$0.91350
2,000+
$0.85050
5,000+
$0.81900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the LM1086ILD-3.3/NOPB linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this LM1086ILD-3.3/NOPB model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 27V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 1.5V @ 1.5A
- Current - Output: 1.5A
- Current - Quiescent (Iq): 5 mA
- Current - Supply (Max): 10 mA
- PSRR: 72dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-WDFN Exposed Pad
- Supplier Device Package: 8-WSON (4x4)
Related Products
Texas Instruments
TPS76850QDR
STMicroelectronics
LDS3985M30R
ABLIC Inc.
S-1133B21-U5T1U
Texas Instruments
TPS73215DCQ
onsemi
NCP114AMX290TCG
Texas Instruments
UC285TDKTTT-ADJ
Nisshinbo Micro Devices Inc.

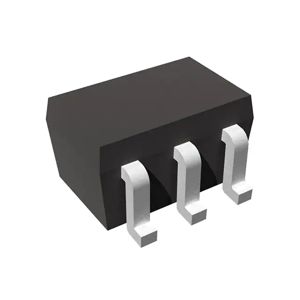

RP109Q112B-TR-FE
Analog Devices Inc.

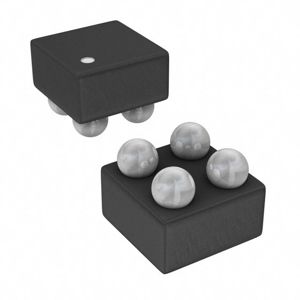

ADP150ACBZ-2.75R7
