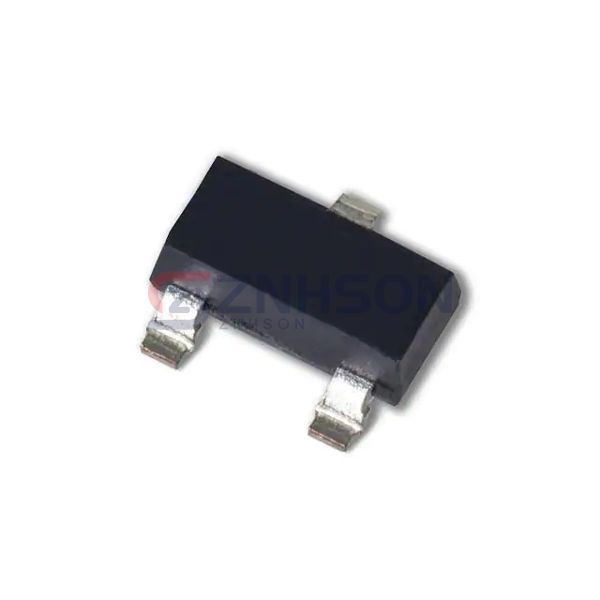

LSBF510 SOT-23 3L ROHS
Linear Integrated Systems, Inc.
Linear Integrated Systems, Inc.
HIGH GAIN, SINGLE N-CHANNEL JFET
$4.26
Available to order
Reference Price (USD)
1+
$4.26000
500+
$4.2174
1000+
$4.1748
1500+
$4.1322
2000+
$4.0896
2500+
$4.047
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LSBF510 SOT-23 3L ROHS from Linear Integrated Systems, Inc. represents the pinnacle of JFET technology in Discrete Semiconductor Products. This high-temperature variant operates flawlessly up to 200 C while maintaining stable parameters. The proprietary diffusion process ensures minimal parameter drift over time and temperature cycles. Oil exploration tools, geothermal monitoring systems, and aircraft engine sensors extensively use this JFET. Its unique capabilities shine in downhole electronics, combustion analysis equipment, and spacecraft thermal management systems. With its ceramic packaging and high-reliability construction, the LSBF510 SOT-23 3L ROHS continues to set industry benchmarks for JFET performance in extreme environment applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Voltage - Breakdown (V(BR)GSS): 30 V
- Drain to Source Voltage (Vdss): 30 V
- Current - Drain (Idss) @ Vds (Vgs=0): 200 µA @ 15 V
- Current Drain (Id) - Max: 10 mA
- Voltage - Cutoff (VGS off) @ Id: 300 mV @ 10 nA
- Input Capacitance (Ciss) (Max) @ Vds: 4.5pF @ 15V
- Resistance - RDS(On): -
- Power - Max: 350 mW
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
