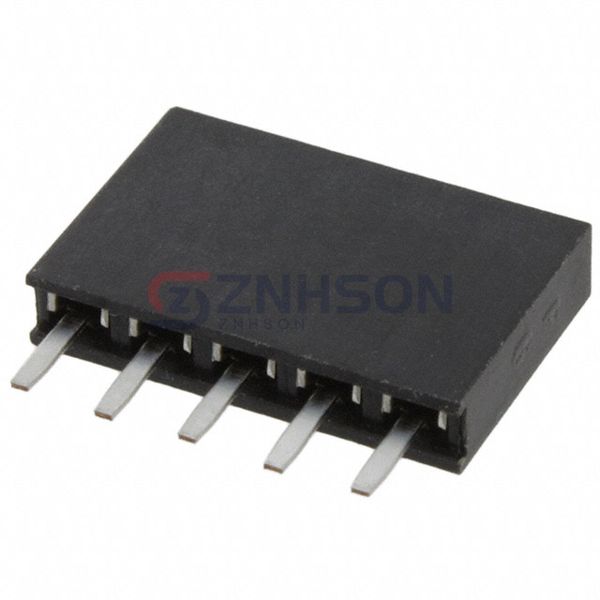

M20-7820542
Harwin Inc.
Harwin Inc.
CONN RCPT 5POS 0.1 GOLD PCB
$1.15
Available to order
Reference Price (USD)
1+
$0.90000
44+
$0.74409
132+
$0.68197
528+
$0.55799
1,012+
$0.49600
5,016+
$0.43400
10,032+
$0.41230
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M20-7820542 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets provide reliable solutions for high-speed data and power transmission. With advanced shielding and low insertion force, these connectors are ideal for data storage, networking hardware, and gaming consoles. Their high-reliability design ensures performance in servers, routers, and VR systems. Harwin Inc. connectors are the preferred choice for engineers seeking quality and durability in high-tech applications.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 5
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.335" (8.51mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 11.04mm, 12.63mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A
- Voltage Rating: 1000V
