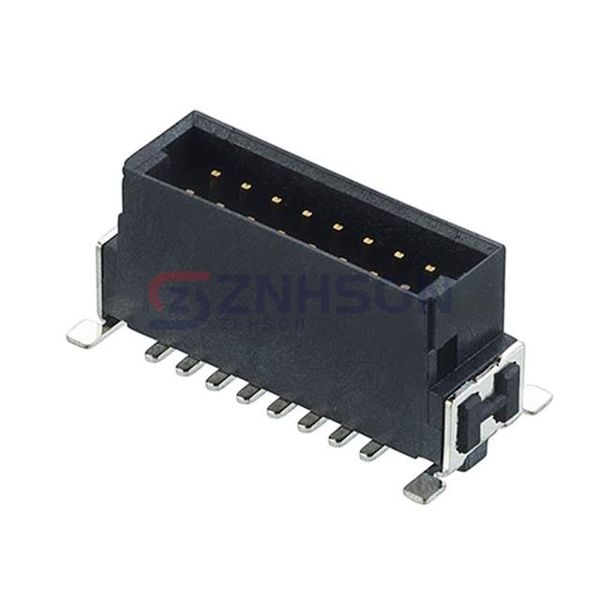

M55-7001642R
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 16POS 1.27MM
$1.49
Available to order
Reference Price (USD)
500+
$0.70740
1,000+
$0.62880
1,500+
$0.58950
2,500+
$0.56985
5,000+
$0.55020
12,500+
$0.51090
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the M55-7001642R rectangular connector header from Harwin Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the M55-7001642R is perfect for automotive, industrial, and consumer electronics. Harwin Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.266" (6.76mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-109-01-FM-DV-P-TR
Amphenol ICC (FCI)
68015-124HLF
Samtec Inc.
TSM-113-01-L-DV-LC-TR
Amphenol ICC (FCI)
10132450-1021GLF
Samtec Inc.
ZSS-105-09-G-D-1315-LL
Samtec Inc.
TSW-105-14-L-D-LL
Samtec Inc.

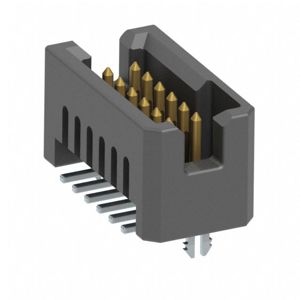

TFM-106-02-L-D-LC
Sullins Connector Solutions

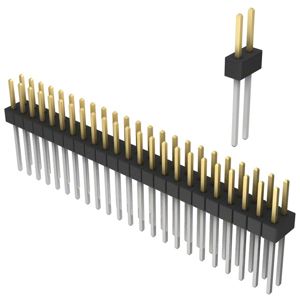

PBC23DADN
