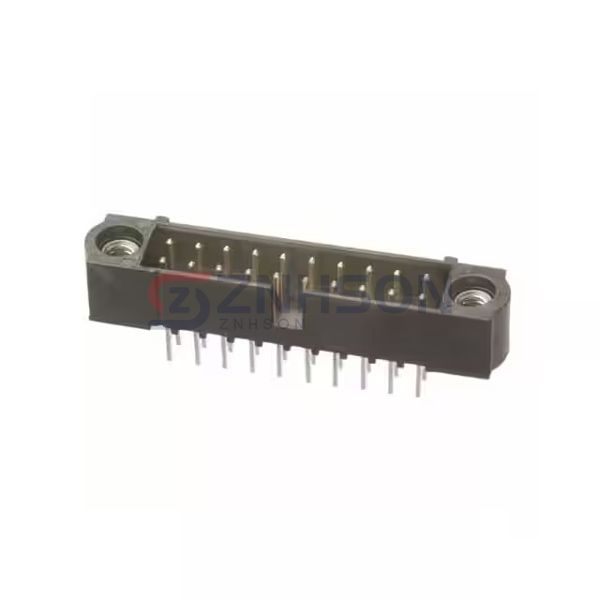

M80-5011605
Harwin Inc.
Harwin Inc.
DATAMATE J-TEK DIL MALE VERTICAL
$8.61
Available to order
Reference Price (USD)
504+
$7.00599
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-5011605 male pin header by Harwin Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Harwin Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.173" (4.40mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800VAC/DC
Related Products
Samtec Inc.
ZSS-120-02-S-D-640
Mill-Max Manufacturing Corp.
852-40-036-30-001000
3M
929700-11-17
Omron Electronics Inc-EMC Div
XG8T-1431
Samtec Inc.
BBD-120-T-C
Sullins Connector Solutions
PBC33SAEN

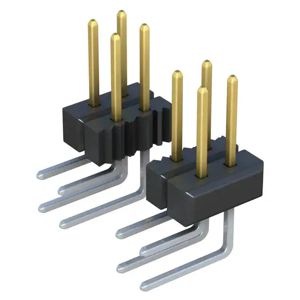

Sullins Connector Solutions
PBC05DBAN

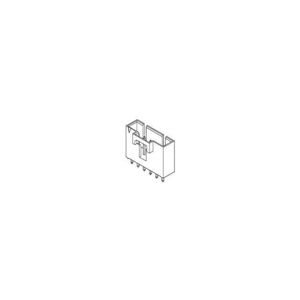

Molex
70543-0012

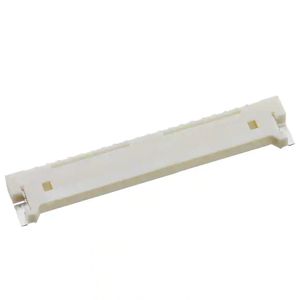

Molex
