M80-8260442P
Harwin Inc.
Harwin Inc.

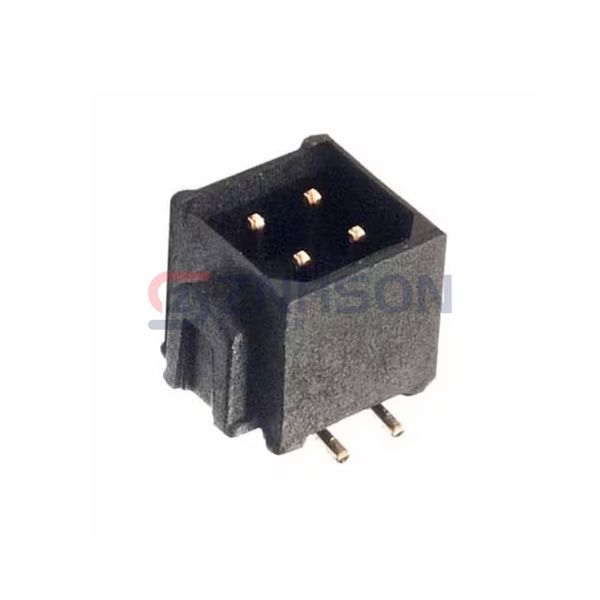

CONN HEADER SMD 4POS 2MM
$3.36
Available to order
Reference Price (USD)
512+
$2.55680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the M80-8260442P rectangular connector header from Harwin Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the M80-8260442P adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Harwin Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.205" (5.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800V
