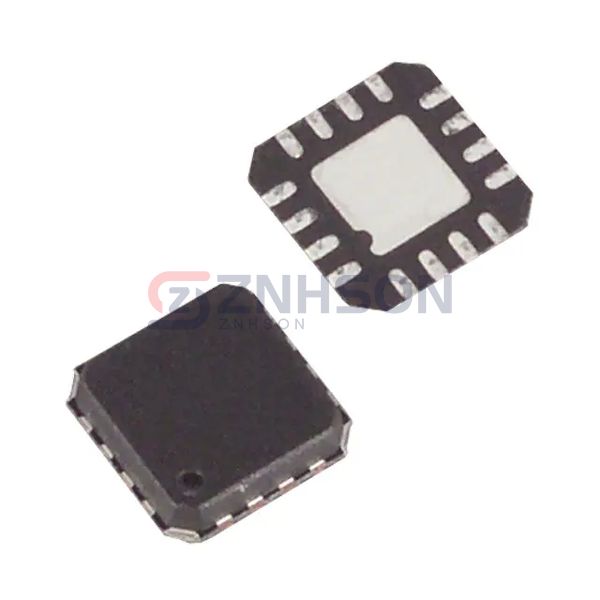

MAX4523EGE+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SW QUAD ANLG LV SPST 16QFN
$0.00
Available to order
Reference Price (USD)
2,500+
$1.12500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc./Maxim Integrated's MAX4523EGE+T redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The MAX4523EGE+T is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 100Ohm
- Channel-to-Channel Matching (ΔRon): 1Ohm
- Voltage - Supply, Single (V+): 2V ~ 12V
- Voltage - Supply, Dual (V±): ±2V ~ 6V
- Switch Time (Ton, Toff) (Max): 80ns, 30ns
- -3db Bandwidth: -
- Charge Injection: 1pC
- Channel Capacitance (CS(off), CD(off)): 2pF, 2pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -90dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VQFN Exposed Pad
- Supplier Device Package: 16-QFN (4x4)
Related Products
Renesas Electronics America Inc
HI1-5047-5
Analog Devices Inc./Maxim Integrated
MAX4559CSE
Texas Instruments
MPC507APG4
Analog Devices Inc./Maxim Integrated
MAX4582CUE
Analog Devices Inc./Maxim Integrated
MAX328CPE
Analog Devices Inc.
ADG444ABRZ-REEL
Analog Devices Inc./Maxim Integrated
MAX4533EWP
Analog Devices Inc./Maxim Integrated
MAX355MJE
Analog Devices Inc./Maxim Integrated

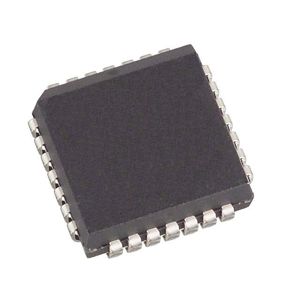

MAX4800ACQI+
