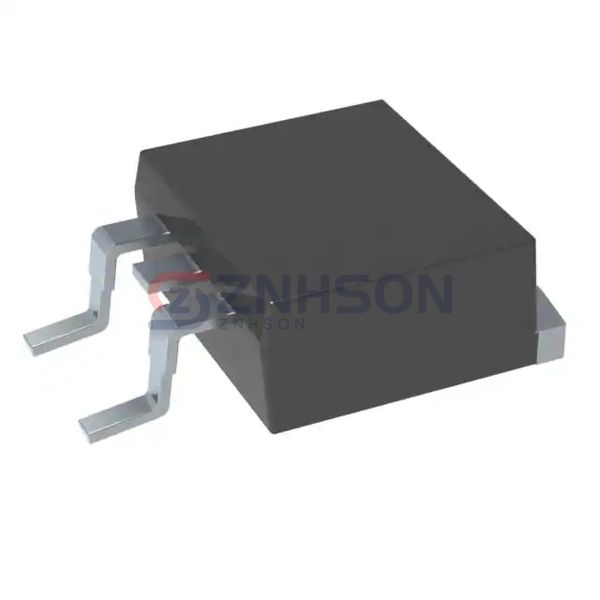

MBR30H150DC_R2_00001
Panjit International Inc.
Panjit International Inc.
ULTRA LOW IR SCHOTTKY BARRIER RE
$1.37
Available to order
Reference Price (USD)
1+
$1.37000
500+
$1.3563
1000+
$1.3426
1500+
$1.3289
2000+
$1.3152
2500+
$1.3015
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the MBR30H150DC_R2_00001 by Panjit International Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Panjit International Inc.'s patented junction design, the MBR30H150DC_R2_00001 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 850 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 800 nA @ 150 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263
Related Products
Vishay General Semiconductor - Diodes Division
VS-VSKC320-12PBF
Panasonic Electronic Components
DB4J314K0R
Diodes Incorporated
SBR40U200CTB-13
Fairchild Semiconductor
MBR3050PT
Nexperia USA Inc.
BAV170MYL
GeneSiC Semiconductor
MBRT30030R
onsemi
DAP222G
Nexperia USA Inc.
BAW56W,115
Linear Integrated Systems, Inc.

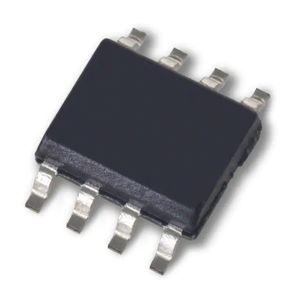

SSTDPAD5 SOIC 8L
