MC14052BF
onsemi
onsemi
IC MUX/DEMUX DUAL 4X1 16SOEIAJ
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical switching applications, the MC14052BF by onsemi delivers unmatched reliability in our Analog Interface ICs portfolio. Its monolithic CMOS construction provides <5pF channel capacitance and rail-to-rail signal handling capability. The MC14052BF excels in aerospace telemetry systems, downhole drilling instrumentation, and renewable energy inverters where vibration resistance and long-term stability are paramount. Unique features include: power-off protection (signals pass when unpowered), TTL/CMOS compatible control inputs, and daisy-chain capability for channel expansion. Sample applications include: multi-zone HVAC controls, spectrometer detector arrays, and autonomous vehicle LIDAR subsystems.
Specifications
- Product Status: Obsolete
- Switch Circuit: DP4T
- Multiplexer/Demultiplexer Circuit: 2:4
- Number of Circuits: 2
- On-State Resistance (Max): 280Ohm
- Channel-to-Channel Matching (ΔRon): 10Ohm
- Voltage - Supply, Single (V+): 3V ~ 18V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 17MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 7.5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.209", 5.30mm Width)
- Supplier Device Package: 16-SOEIAJ
Related Products
Fairchild Semiconductor
FSA2257MTCX
Vishay Siliconix
DG613DJ-E3
Analog Devices Inc.

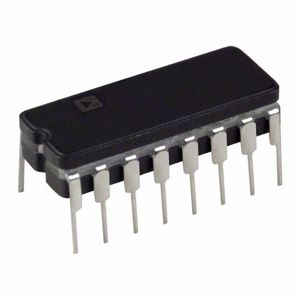

AD7501KQ
Vishay Siliconix
DG2042DN-T1-E4
Analog Devices Inc./Maxim Integrated
DG442AK/883B
Analog Devices Inc.
ADG409BR
Nexperia USA Inc.

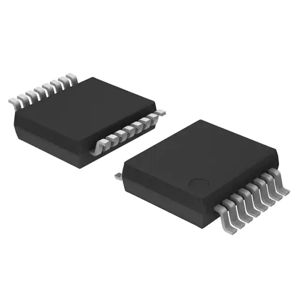

74HCT4052DB,118
