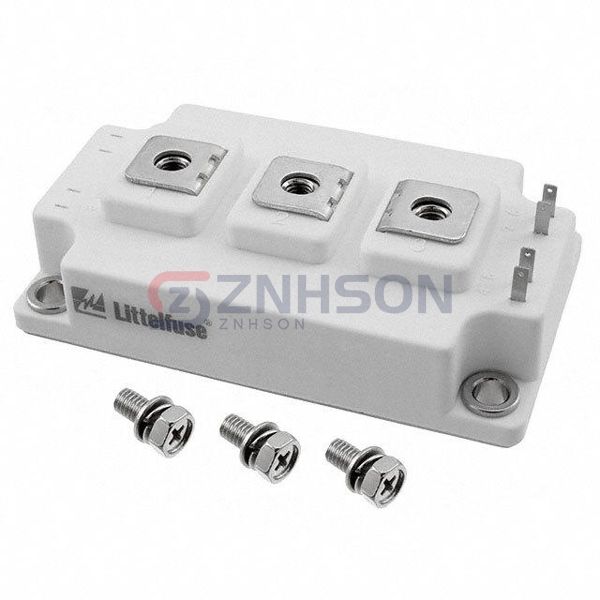

MG12400D-BN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 580A 1925W D3
$0.00
Available to order
Reference Price (USD)
1+
$182.65000
10+
$174.55600
25+
$168.77600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Littelfuse Inc.'s MG12400D-BN2MM, a high-efficiency IGBT module in the Discrete Semiconductor Products range. This transistor module incorporates seventh-generation micro-pattern trench technology for minimal conduction losses. Special features include: integrated gate driver compatibility, SCADA-ready monitoring interfaces, and corrosion-resistant terminals. Application areas cover industrial cranes, subway power networks, and large-scale battery storage systems. The MG12400D-BN2MM is particularly effective in high-ambient-temperature environments like steel mill drives. Littelfuse Inc. brings decades of semiconductor expertise to every MG12400D-BN2MM module.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 580 A
- Power - Max: 1925 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 400A (Typ)
- Current - Collector Cutoff (Max): 2 mA
- Input Capacitance (Cies) @ Vce: 28 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: D3
