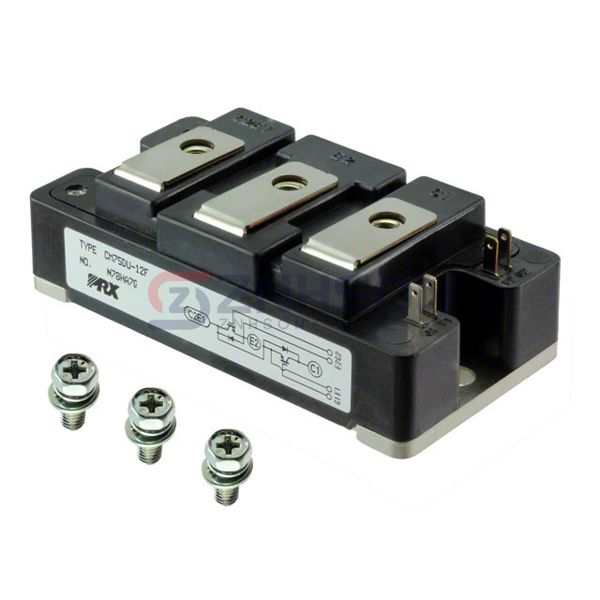

CM75DU-12F
Powerex Inc.
Powerex Inc.
IGBT MODULE 600V 75A 290W
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Powerex Inc.'s CM75DU-12F, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The CM75DU-12F performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Powerex Inc.'s CM75DU-12F, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 75 A
- Power - Max: 290 W
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 75A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 20 nF @ 10 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
